Troubleshooting¶

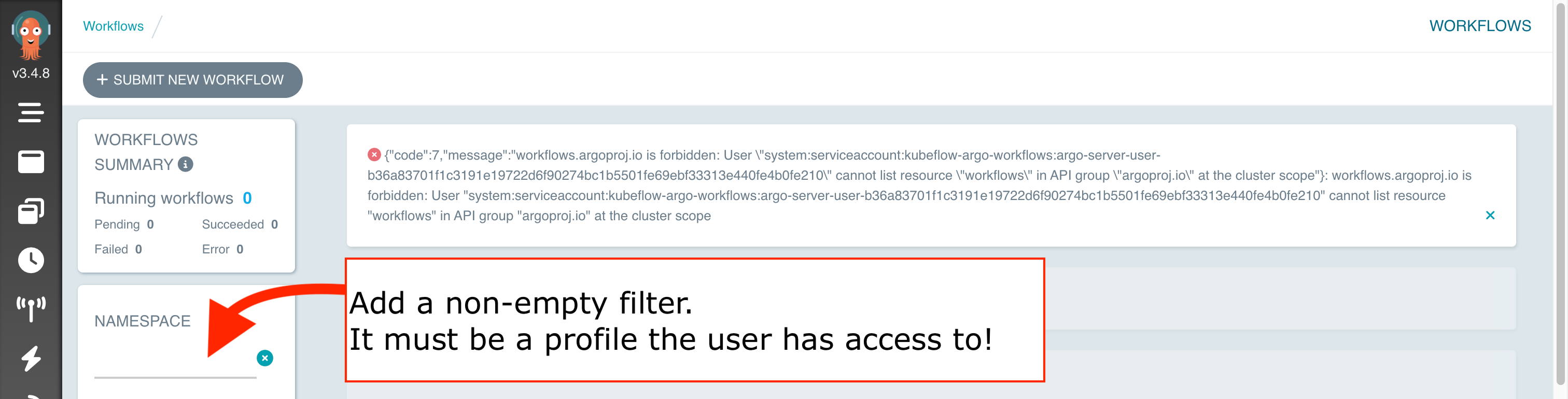

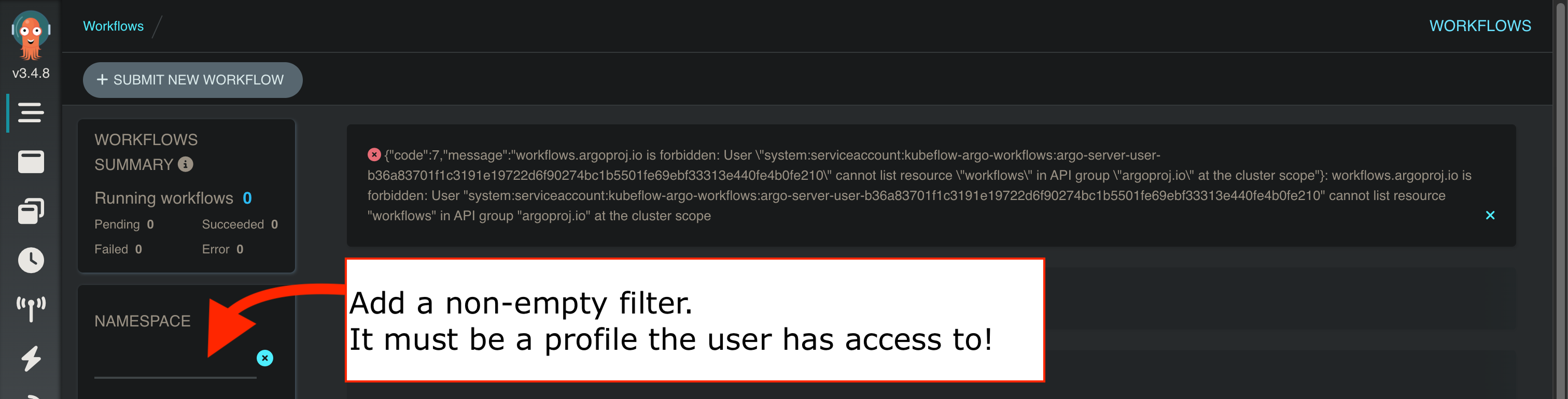

Sometimes, users may open the "Argo Server" UI and see an error message like this:

{"code":7,"message":"workflows.argoproj.io is forbidden: User \"system:serviceaccount:kubeflow-argo-workflows:argo-server-user-b36a83701f1c3191e19722d6f90274bc1b5501fe69ebf33313e440fe4b0fe210\" cannot list resource \"workflows\" in API group \"argoproj.io\" at the cluster scope"}: workflows.argoproj.io is forbidden: User "system:serviceaccount:kubeflow-argo-workflows:argo-server-user-b36a83701f1c3191e19722d6f90274bc1b5501fe69ebf33313e440fe4b0fe210" cannot list resource "workflows" in API group "argoproj.io" at the cluster scope

This error is actually telling you that you need to set a namespace filter, as the Argo Server UI is trying to list ALL workflows in the cluster (but no user has permission to do that). Each user's access in the Argo Server UI corresponds to their profile memberships.

If you experience crashes in your Istio sidecars with an error message like this:

2024-08-25T10:50:29.229925Z info    Running command: iptables-restore --noflush
2024-08-25T10:50:29.240073Z error   Command error output: xtables parameter problem: iptables-restore: unable to initialize table 'nat'

Then your nodes are likely missing some Linux kernel modules required by Istio. This error has been discussed in the upstream Istio repo (istio#23009, istio#44118).

1. Get a list of the currently loaded kernel modules by running lsmod:

   lsmod | awk '{print $1}' | sort


2. At the time of writing, the following command will enable the required kernel modules on boot:

   ## NOTE: if you are using Istio ambient mode, there are additional modules required
   cat <<EOF | sudo tee /etc/modules-load.d/99-istio-modules.conf
   br_netfilter
   ip_tables
   iptable_filter
   iptable_mangle
   iptable_nat
   iptable_raw
   nf_nat
   x_tables
   xt_REDIRECT
   xt_conntrack
   xt_multiport
   xt_owner
   xt_tcpudp
   EOF


3. Now, either reboot your nodes or immediately load the modules with the following commands (which will also indicate if any modules are missing):

   sudo modprobe br_netfilter
   sudo modprobe ip_tables
   sudo modprobe iptable_filter
   sudo modprobe iptable_mangle
   sudo modprobe iptable_nat
   sudo modprobe iptable_raw
   sudo modprobe nf_nat
   sudo modprobe x_tables
   sudo modprobe xt_REDIRECT
   sudo modprobe xt_conntrack
   sudo modprobe xt_multiport
   sudo modprobe xt_owner
   sudo modprobe xt_tcpudp


If you experience pods crashing with an error message like this:

too many open files

You may need to increase the fs.inotify.max_user_* sysctl values on your nodes (only for Linux nodes). This error has been discussed in the upstream Kubeflow repo (kubeflow/manifests#2087)

To resolve it, you will need to increase your system's open/watched file limits:

1. Modify /etc/sysctl.conf to include the following lines:

   fs.inotify.max_user_instances = 1280
   fs.inotify.max_user_watches = 655360


2. Now, apply immediately the changes with the following command:

   sudo sysctl -p
